NGR06

Sale

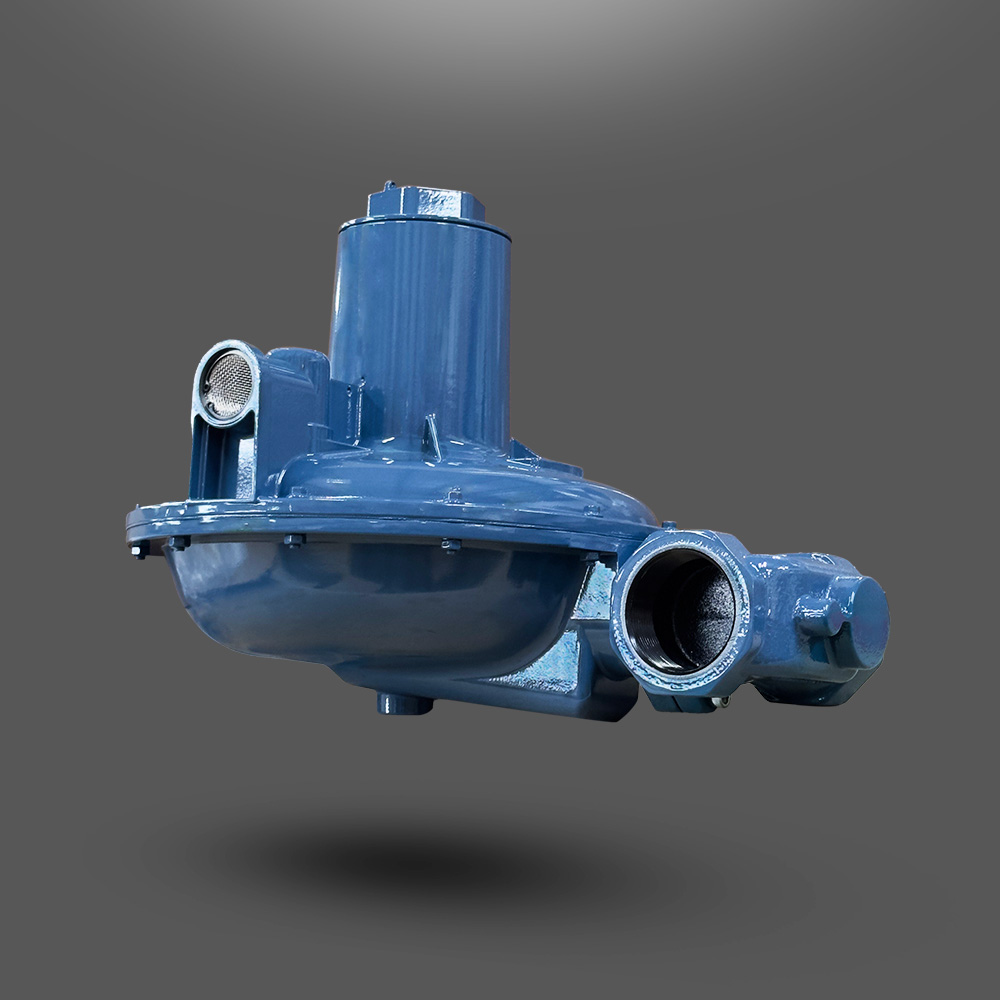

A 45-degree angled view of the NGR06 gas regulator, showcasing its durable design, its vent, and inlet connection point.

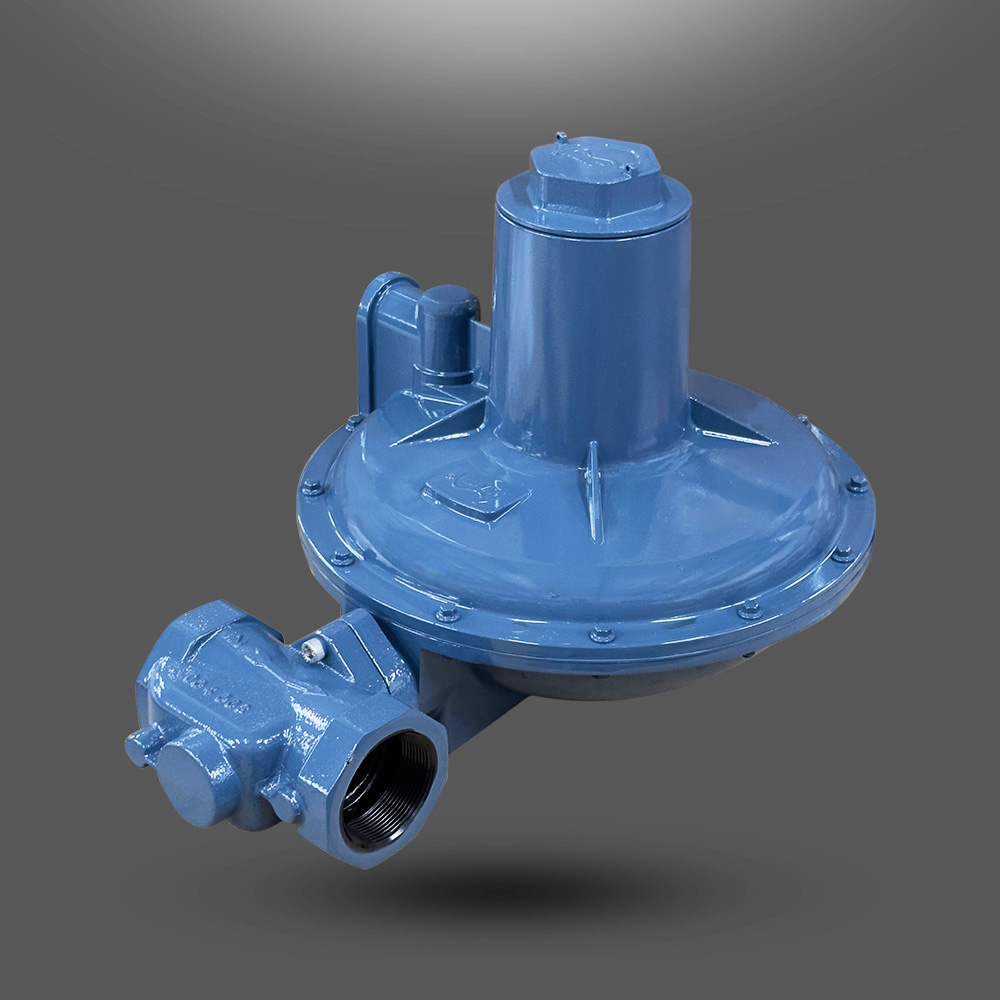

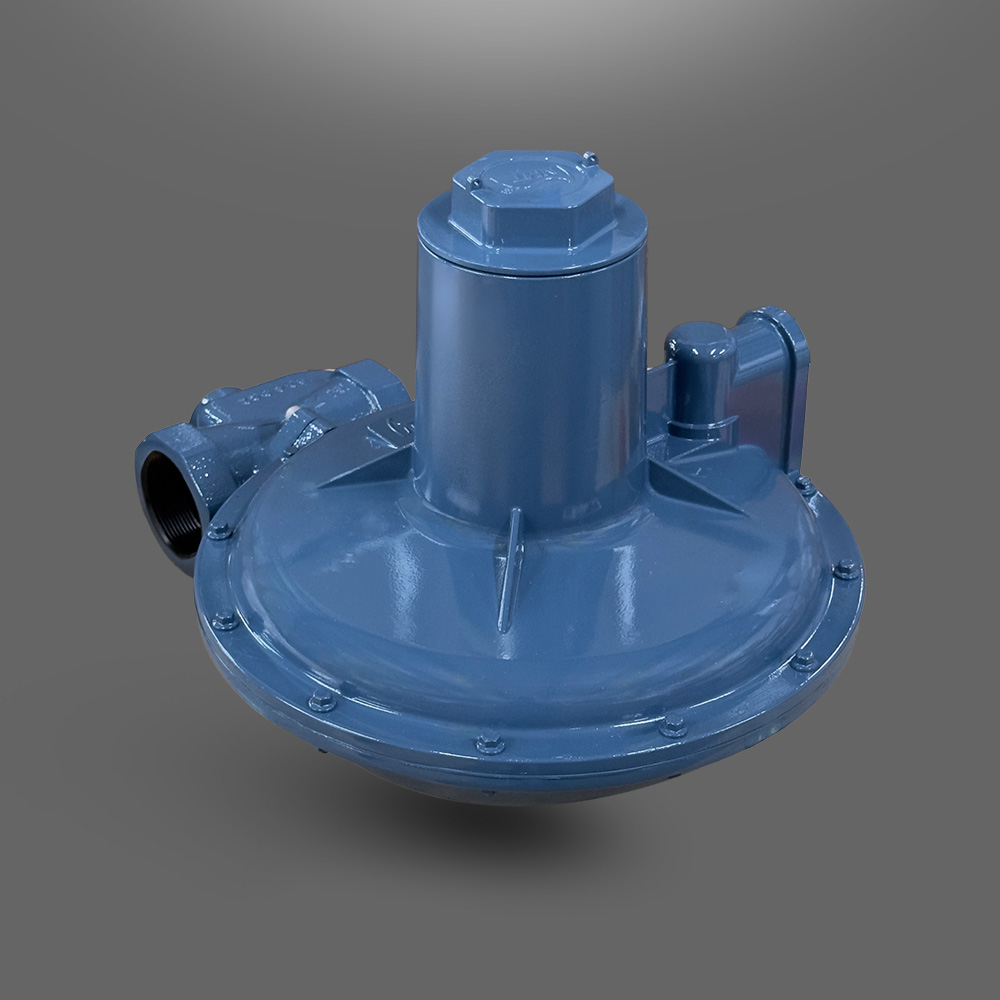

A rear view of the NGR06 gas regulator, highlighting its rear outlet connection point and sturdy design.

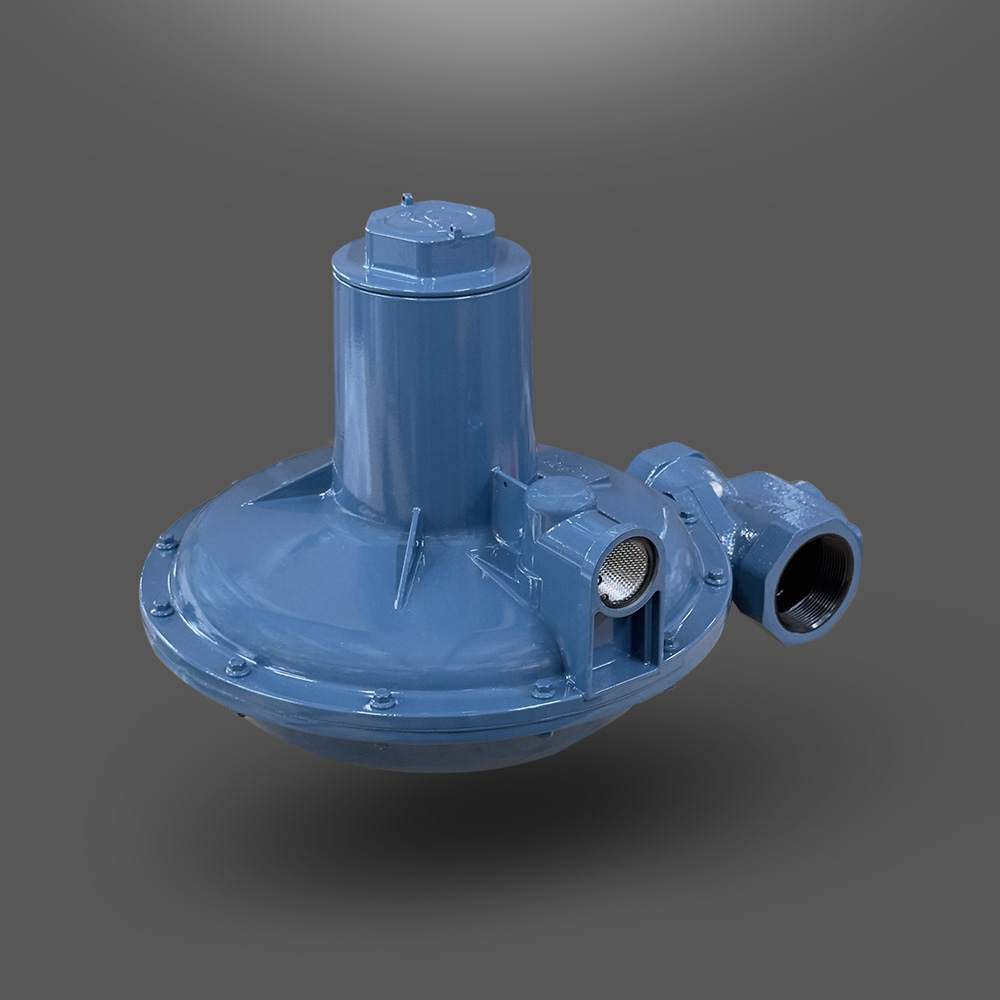

An angled view of the NGR06 gas regulator, emphasizing its precise connection points.
A front view of the NGR06 gas regulator, showing its rugged construction and build.
No items found.

NGR06

Pipe Size: 1-1/4" to 3" FL

Outlet Pressure Range: 2" to 7 psig

The NMT® NGR06 series spring-loaded gas regulators with internal relief provide consistent and controlled pressure in a variety of residential, industrial, and commercial applications. The NGR06 meets ANSI Z21.80 for Class I, Class II, Vent Limiting, and OPD (Overpressure Protection Device) applications and is designed to be used in many applications where non-corrosive dry gases are used.

‍

Features

  • ANSI Z21.80 certified
  • Vent Limiter Option
  • Internal Relief - OPD
  • Outlet pressures up to 7 psig
  • Conforms to ANSI B109.4
  • Corrosion-resistant exterior

Specifications

  • Gas types: Natural gas, LPG, other non corrosive dry gases‍
  • Maximum inlet pressure: 25 to 125 psig per orifice‍
  • Maximum emergency inlet pressure: 175 psig‍
  • Operating temperature: -40°F to +140°F

Literature & Resources

NGR06 PDF

NGR06 Relief Curves
